Technical Specifications

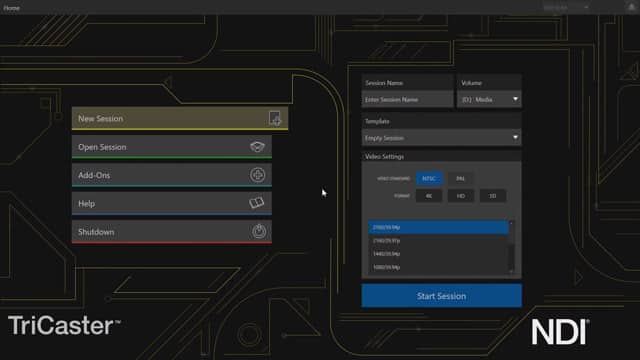

| Network Video Input | 8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1 • 2160p 59.94, 50, 29.97, 25 • 1080p: 59.94, 50, 29.97, 24 • 1080i: 59.94, 50 • 720p: 59.94, 50, 29.97, 25 • SD: 59.94, 50, 25 1Available frame rates determined by model and session video standard (NTSC or PAL) |
| PTZ | Support for Pan-TiSupport for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset systemlt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system |
| Skype TX | Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication |
| Network Video Output | 4 x independent IP video mix outputs via NDI® |
| Stream Output | 2 x streaming video output, independently configurable, with simultaneous stream archive |
| Monitor Outputs | 4 x mini display port with output adapters 3 x of the outputs support multiviewers using standard display resolutions |

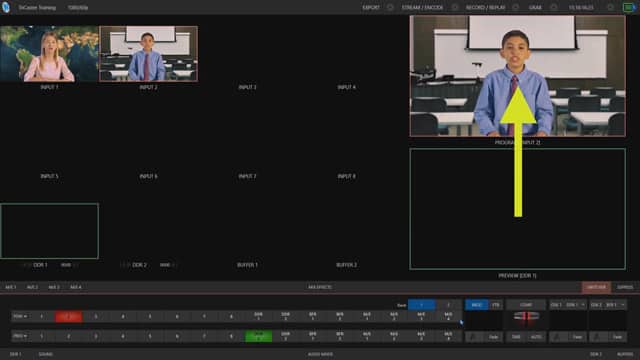

| Mix/Effect Buses (M/E) | • 4 x M/E buses supporting video re-entry • 1 x Mix/Effect channel per bus with support for up to 2 sources • 2 x KEY layers per bus |
| DSK Channels | 2 x DSK channels |
| Media | 4 x media players • 2 x DDR • 2 x GFX • 1 x Sound 15 x media buffers • 5 x animation buffers • 10 x graphic buffers |
| Keyers | Integrated LiveMatte™ chroma keying technology on all source channels and M/E buses • 8 x input keyers • 2 x media player keyers • 4 x M/E keyers • 15 x buffer keyers |
| COMP | Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus |
| Virtual Sets | Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros | Record, store, edit and automate commands and user-configured operation sequences • Attach to control panel buttons, keyboard shortcuts, MIDI and X-keys® buttons. • Supports control via web-based interface |

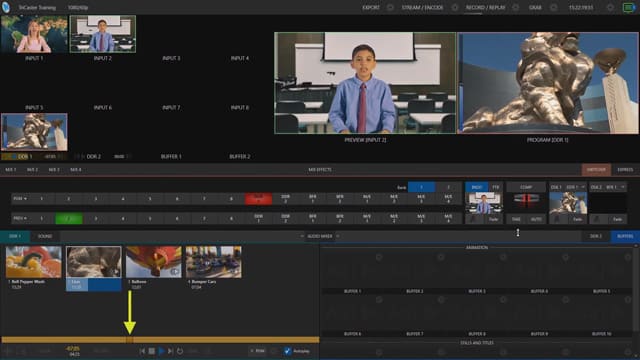

| Recording | 4 x recording channels from either NDI® inputs or Mix outputs • Records and retains alpha channel data |
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Storage | • Capacity varies by format, resolution and file specification • Supports recording to external storage via USB 3.0 |
| Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Audio Mixing | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
| Local Audio Input | 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line |
| Local Audio Output | 2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack |
| Network Audio | • Native support for network audio input and output via NDI® • Embedded audio supported for all NDI® input and output video signals • Integrated support3 for Dante™ networking protocol from Audinate® 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) |
| Supported Media File Formats | Import, store, and play back multimedia files, with optional transcoding, including: • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more • Audio: AIFF, MP3, WAV, and more |
| Processing | • Video: Floating Point YCbCr +A 4:4:4:4 • Audio: Floating Point, 96 kHz |
| Latency | Processing Latency: ~1.0-1.5 frames Practical Throughput Latency: 4 frames |
| A/V Standards | HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155 |
| Tally | Support for network tally via NDI® |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| System Drive | 250GB SSD |
| PoE | 4 PoE+ (802.3at) Ports* 60 Watt power capability** |
| NIC | 2 x 1 Gigabit NIC |
| System Physical | System chassis, including adjustable cable retention bracket • 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm) • 9 lbs (4.1 kg) |
**Devices can be connected on all four ports, and an ideal setting is either all 4 ports via PoE or two ports connected and supplying PoE+, or some combination of the two.
Subject to change without notice.
