Viz Connect Studio I/O

Technical Specifications

Video In
NDI® 2, SRT, SDI, RTMP, RTSP
Video Out
NDI®, SDI
IP I/O
Up to 8x
SDI I/O
Up to 8x via HD-BNC
4K UHD I/O SDI I/O
Up to 2x via 12G-SDI, 6G-SDI, or quad-link 3G-SDI
Media Playback Channels
Up to 8x
Recording Channels
Up to 8x SDI Inputs Only
Supported Video Formats
  • 2160p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080i: 59.94, 50
  • 720p: 59.94, 29.97, 25, 24, 23.976
  • 576i: 50
  • 480i: 59.94
  • 1080p: 60, 59.94, 50
  • 1080p/PsF: 30, 29.97, 25, 24, 23.98
  • 1080i: 30, 29.97, 25
  • 720p: 60, 59.94, 50
  • 576i: 25
  • 480i: 29.97
Supported Media Formats
  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more
Audio I/O
Up to 8x SDI embedded
Audio Networking
  • Native support for network audio input and output via NDI®
  • Embedded SDI audio supported for all NDI® input and output video signals
  • Support 1 for Dante™, AES67, and ASIO protocols via compatible audio drivers
Timecode
LTC Input and VITC Output
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
A/V Standards
  • 12G-SDI (ST 2082-10)
  • 6G-SDI (ST 2081-10)
  • 3G-SDI Level A (ST 425-1 Level A Mapping),
  • Quad Link 3G-SDI (ST 425-5),
  • HD-SDI (ST 292),
  • SD-SDI (ST 259)
Video Processing
YCbCr + Alpha color space, using 4:2:2:4
Audio Processing
Floating Point, 96 kHz
Genlock
Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported
Multiviewer
Via HDMI or DisplayPort
NIC
  • 1 x 10 Gigabit NIC (10GBASE-T over RJ45)
  • 1 x 2.5 Gigabit LAN
  • 1 x 1 Gigabit NIC (RJ45)
System Physical
  • 2 RU chassis with 500W PSU
  • Rack rails sold separately
  • 19 x 3.5 x 19.57 inches (48.3 x 8.9 x 49.7 cm) with rack ears
1 Compatible audio drivers and/or virtual sound card licenses required (sold separately)
2 Up to two (2) channels of HEVC at 1080/59.94p decode supported
3 The specifications for decoding NDI|HX sources vary based on resolution and frame-rate. Please use NDI Tools line to add desired number of channels of NDI|HX sources at any resolution
Subject to change without notice.

Viz Connect Studio I/O Frontplane

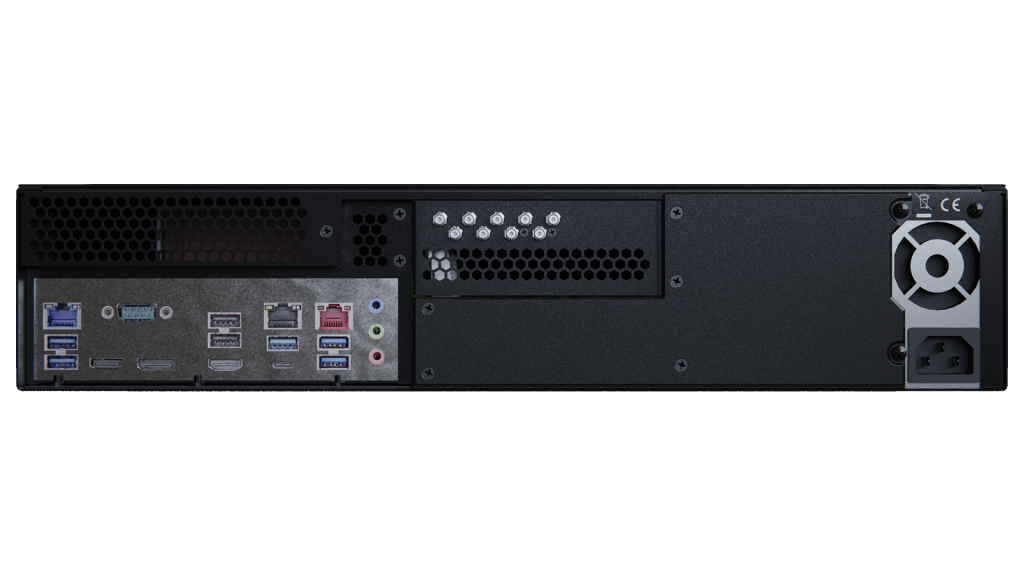

Viz Connect Studio I/O Backplane
